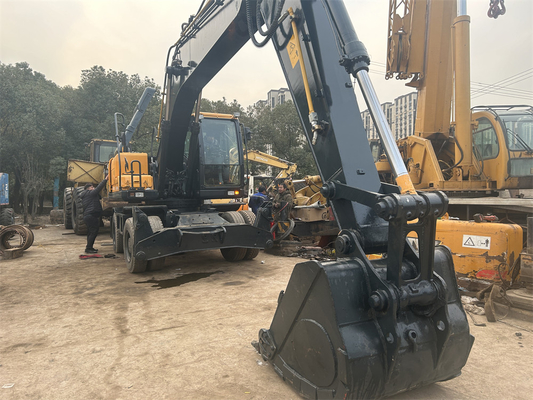

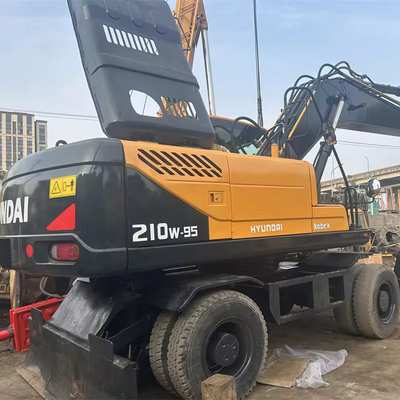

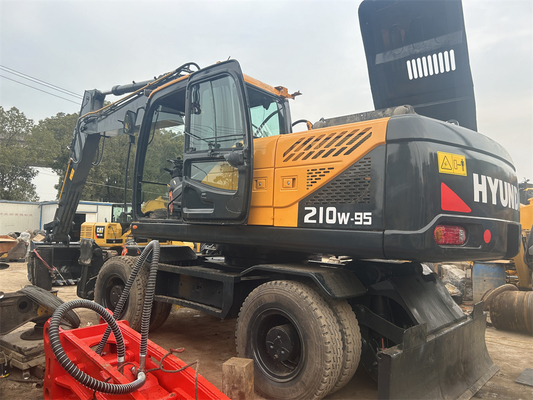

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition

Brand Name:	HYUNDAI 210W-9
Price:	$40,000.00/sets >=1 sets

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Operating Weight:

21TONS

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Showroom Location:

CHINA

Year:

2016

Condition:

Used

Moving Type:

Wheel Excavator

Bucket Capacity:

1.2M³

Maximum Digging Height:

9840MM

Maximum Digging Depth:

6810MM

Machine Weight:

21000 Kg

Max Digging Radius:

2750

Make:

HYUNDAI 210W-9

Rated Speed:

Warranty:

1 Year

Hydraulic Cylinder Brand:

ORIGINAL

Hydraulic Pump Brand:

ORIGINAL

Hydraulic Valve Brand:

ORIGINAL

Engine Brand:

Cummins B5.9-C

UNIQUE SELLING POINT:

High Operating Efficiency

Power:

124KW

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

New Product 2024

Warranty Of Core Components:

Not Available

Core Components:

PLC, Pressure Vessel, Other, Engine, Gear, Motor, Pump, Bearing

Product Description

Specifications

Tonnage (ton) 21

Working weight of the whole machine (kg) 20560

Bucket capacity (m ³) 0.51-1.34

Boom length (mm) 5.65

Stick length (mm) 2.92

Origin Beijing

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

dynamic system

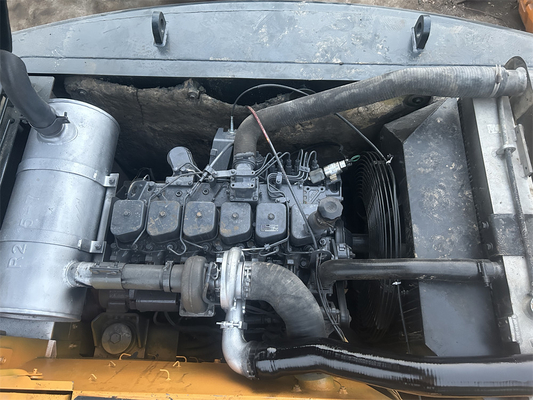

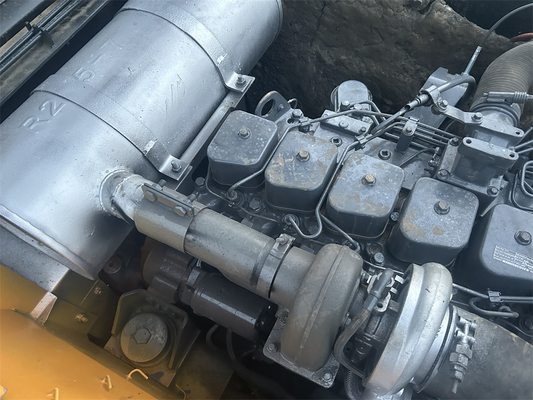

Engine model Cummins B5.9-C

Rated power (kW/rpm) 124/1950

Total displacement (L) 5. nine

Cooling method: water cooling

Remarks: Six cylinder four stroke turbocharged direct injection engine

Maximum torque (N.m/rpm) 68.4/1500

Number of cylinders (6)

performance

Forward speed (Km/h) 35

Rotation speed (rpm) 11

Climbing ability (%) 31.5 °

Bucket excavation force (kN) 149.1

Dipper arm excavation force (kN) 106.9

Minimum turning radius (m) 6.69

Maximum traction force (kN) 108

Drive form: dual speed axial piston motor drives gearbox

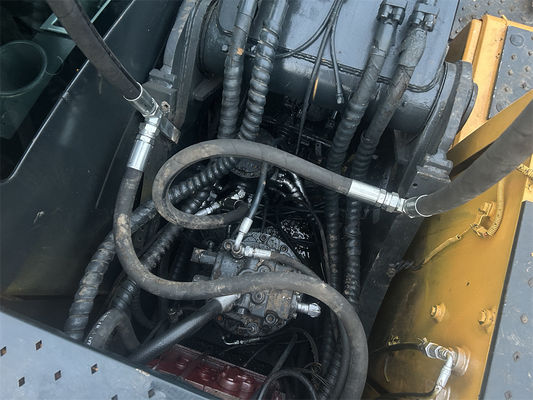

hydraulic system

Main overflow set pressure (Mpa) 350

Rotary hydraulic motor type quantitative swash plate plunger

Motor walking hydraulic motor

Type: Double speed axial piston motor

Maximum flow rate of main pump (l/min) 222 × 2

Main safety valve pressure (Mpa) 38

Hydraulic circuit for walking (Mpa) 38

Rotary hydraulic circuit (Mpa) 26.5

Control hydraulic circuit (Mpa) 4

Boom cylinder - cylinder diameter x stroke (mm) 2-120 x 1290

Stick cylinder - cylinder diameter x stroke (mm) 140 x 1510

Bucket cylinder - cylinder diameter x stroke (mm) 125 x 1055

Main pump type variable swash plate plunger pump

Working hydraulic oil circuit (Mpa) 38

Pilot oil circuit (MPa) 4

Oil capacity

Fuel tank (L) 310

Hydraulic oil tank (L) 165

Engine oil change quantity (L) 24

Cooling liquid (L) 35

Hydraulic system (L) 340

Main body size

Total length of transportation (mm) 9530

Total transportation width (mm) 2530

Total transportation height (mm) 3500

Ground clearance of counterweight (mm) 1305

Wheelbase (mm) 2800

Single tire width (mm) 308

Total outer width of tire (mm) 640

Track width (mm) 1874

Minimum ground clearance (mm) 365

Minimum turning radius of the front working device (mm) 3580

Rear end turning radius (mm) 2800

Boarding width (mm) 2530

Scope of work

Maximum excavation radius (mm) 9960

Maximum excavation radius on the ground (mm) 9750

Maximum excavation depth (mm) 6380

Maximum excavation height (mm) 10000

Maximum unloading height (mm) 7160

Maximum vertical excavation depth (mm) 5990

Maximum excavation depth (mm) 6210

Minimum turning radius (mm) 3580

Bulldozer lifting or pushing depth (mm) 445

Bulldozer width x height (mm) 2490 x 610

Leg width (mm) 3370

About us

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition 0

package and shipping

load method

advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition 1

Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition 3

Method 3 use 40FR Frame

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition 6

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition 8

Method 4 use 40HQ container ,cheapest but destroy machine

Used Hyundai 210w-9 Wheel Excavator with 1.2M³ Bucket Capacity in Excellent Condition 9
