Parameter configuration of Sany Heavy Industry SY155H excavator

specifications

Power Traditional Power

Domestic production by manufacturers

Bucket Backhoe

Tonnage (ton) 15

Working weight of the whole machine (kg) 14100

Bucket capacity (m ³) 0.22-0.7 (0.65)

performance

Rotation speed (rpm) 12

Walking speed (km/h) 5.5/3.5

Climbing ability (%) 70

Ground specific voltage (Kpa) 41.7

Bucket excavation force (kN) 92.7

Dipper arm excavation force (kN) 66.1

dynamic system

Engine model Isuzu ISUZU BB-4BG1TRP

Rated power (kW/rpm) 84/2200

Maximum torque (N.m) 375/1800

Displacement (L) 2.999

Cooling method: water cooling

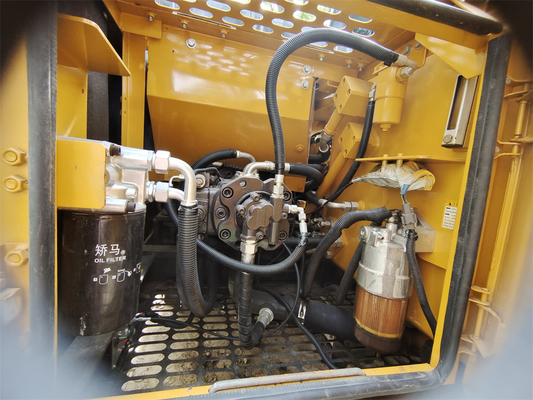

hydraulic system

Is the hydraulic crushing pipeline standard? No

Oil capacity

Fuel tank (L) 240

Hydraulic oil tank (L) 150

Engine oil change quantity (L) 15

Main body size

Total length of transportation (mm) 7870

Total transportation width (mm) 2570

Total transportation height (mm) 2880

Full height of cab (mm) 2740

Boarding width (mm) 2490

Track grounding length (mm) 3010

Total length of track (mm) 3730

Track shoe width (mm) 500

Total width of track (mm) 2550

Track gauge (mm) 1990

Minimum ground clearance (mm) 425

Minimum turning radius of the front working device (mm) 2490

Rear end turning radius (mm) 2210

Maximum height at minimum turning radius (mm) 6495

Number of carrier sprockets (one side) (2 pieces)

Number of track shoes (one side) (pieces) 45

Number of supporting wheels (one side) (number) 7

Scope of work

Maximum excavation radius (mm) 8330

Maximum excavation depth (mm) 5500

Maximum excavation height (mm) 8685

Maximum unloading height (mm) 6115

Maximum vertical excavation depth (mm) 5085

Bulldozer width x height (mm) N/A

Bulldozer lifting or pushing depth (mm) None
