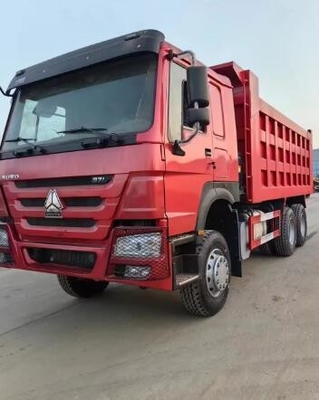

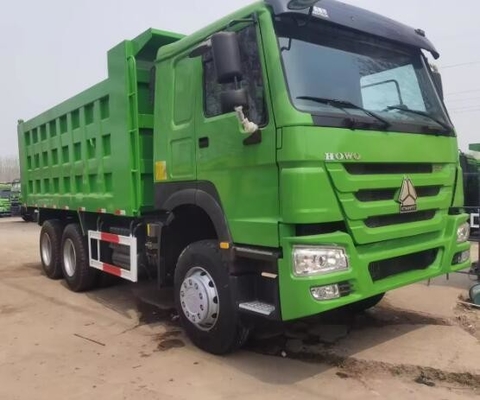

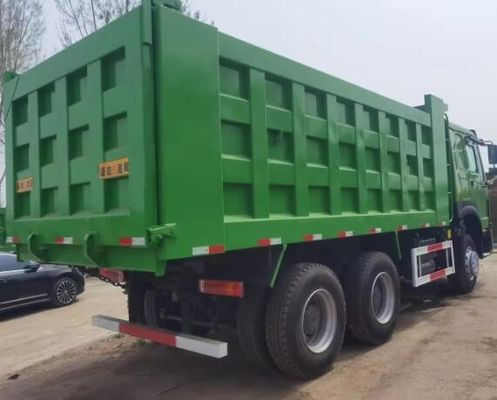

Vehicle announcement: ZZ3317N4267C1

Brand: China National Heavy Duty Truck Corporation

Car series: HOWO

Purpose: Dump truck

Vehicle type: whole vehicle

Drive mode: 8 × 4

Maximum speed: 75km/h

Flipping form: rear unloading type

Tonnage level: heavy-duty trucks

Vehicle reference price: 34-368800 yuan

Chassis reference price: 285800 to 288800 yuan

Manufacturer: China National Heavy Duty Truck Corporation

• Vehicle origin: Jinan, Shandong Province

Vehicle parameters

Rated mass: 15700kg

Curb weight: 15170kg

Total weight: 31000kg

Vehicle length: 10825mm

Vehicle width: 2496mm

Vehicle height: 3450mm

Container length: 7800mm

Box width: 2300mm

Container height: 1000mm

Front wheelbase: 2022/2022mm

Rear wheelbase: 1830/1830mm

Front overhang: 1500mm

Rear overhang: 1975mm

Approach angle: 19 °

• Separation angle: 22 °

Wheelbase: 1800+4200+1350mm

Driver's cab

• Type of cab: HW76 extended type

• Number of passengers allowed: 2 people

engine

Engine model: China National Heavy Duty Truck WD615.96E

Engine form: inline six cylinder, water-cooled, four stroke, turbocharged intercooled, electronically controlled fuel injection rate fuel injection pump, EGR

Maximum power: 276KW

Maximum power speed: 2200rpm

Maximum torque: 1500N. m

Maximum torque speed: 1100-1600rpm

Maximum horsepower: 375 horsepower

Displacement: 9726mL

• Fuel type: diesel

Emission standards: National III

Transmission

Transmission model: HW19710

Shift method: manual

• Number of forward gears: 10 gears

Reverse gear: 2nd gear

chassis

Chassis model: ZZ3317N4267C1

Number of plate springs: 11/11/12

• Clutch: Φ four hundred and thirty

Front axle description: HF9 disc

Rear axle description: AC16

tyre

Number of tires: 12

Tire specifications: 12 (11)
