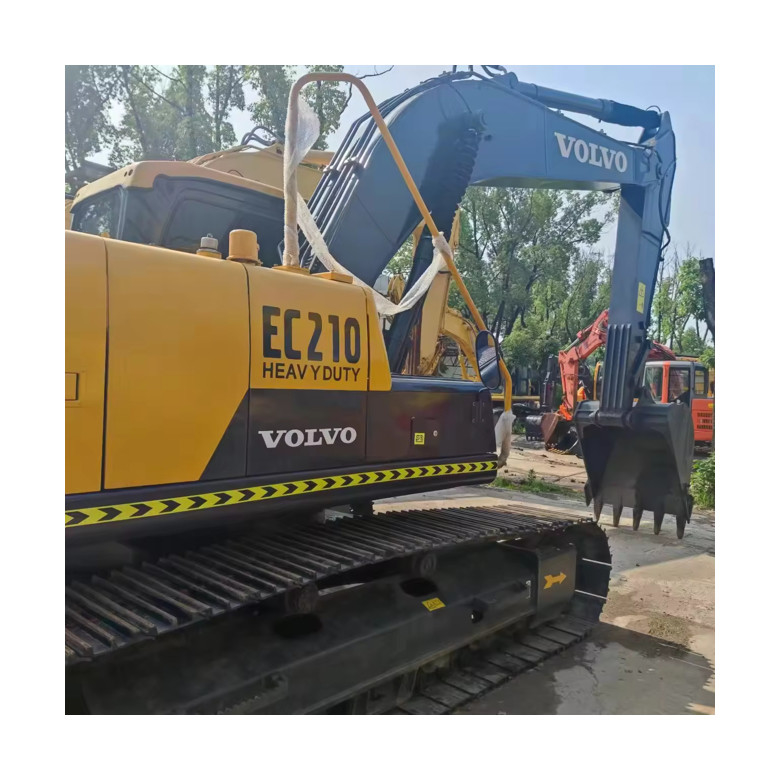

Volvo EC210D Excavator Parameter Configuration

specifications

Power Traditional Power

Manufacturer joint venture/import

Bucket Backhoe

Tonnage (ton) 21

Working weight of the whole machine (kg) 18100-22800

Bucket capacity (m ³) 0.52-1.22

Boom length (mm) 5700

Stick length (mm) 2900

performance

Rotation speed (rpm) 12.3

Rotating torque (Nm) 76.7

Walking speed (km/h) 3.5/5.8

Bucket excavation force (kN) 123

Dipper arm excavation force (kN) 96

Maximum traction force (kN) 183

dynamic system

Engine model Volvo D5E

Rated power (kW/rpm) 123/2000

Maximum torque (N.m) 670/1600

Displacement (L) 4.7

Number of cylinders 4

Cylinder diameter x stroke (mm) 108 * 130

hydraulic system

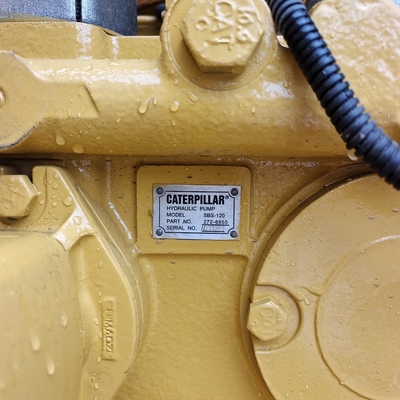

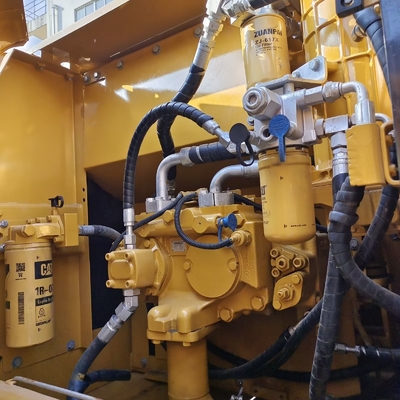

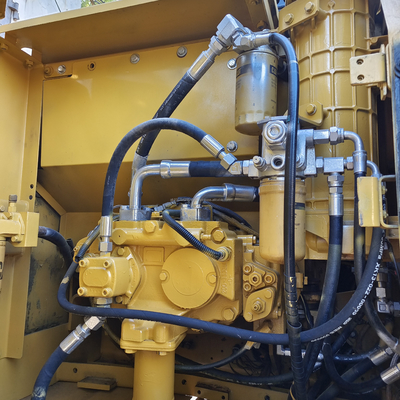

Main pump type: Two variable displacement axial piston pumps

Pilot pump type () Gear pump

Maximum flow rate of main pump (l/min) 2 x 212

Pilot pump flow rate (L/min) 1 x 18

Pilot oil circuit (MPa) 3.9

Working hydraulic oil circuit (Mpa) 32.4/34.3

Hydraulic circuit for walking (Mpa) 34.3

Rotary hydraulic circuit (Mpa) 27.9

Main overflow set pressure (Mpa) 32.4/36.3

Boom oil cylinder - number x cylinder diameter x stroke (mm) 2 * 125 x 1 235

Stick oil cylinder - number x cylinder diameter x stroke (mm) 1 * 135 x 1 540

Bucket oil cylinder - number x cylinder diameter x stroke (mm) 1 * 120 x 1 065

Oil capacity

Fuel tank (L) 375

Hydraulic oil tank (L) 160

Hydraulic system (L) 300

Engine oil change quantity (L) 17

Cooling liquid (L) 15

Main body size

Total length of transportation (mm) 9745

Total transportation width (mm) 2800

Total transportation height (mm) 3 080

Full height of cab (mm) 2930

Boarding width (mm) 2700

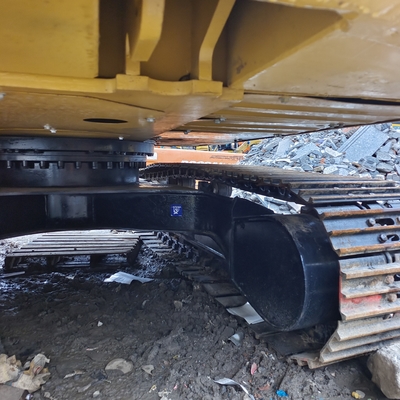

Track grounding length (mm) 3370

Total length of track (mm) 4160

Track shoe width (mm) 600

Track gauge (mm) 2200

Minimum ground clearance (mm) 460

Balance weight ground clearance (mm) 1025

Number of supporting wheels (one side) (number) 7

Number of carrier sprockets (one side) (2 pieces)

Number of track shoes (one side) (piece) 46

Scope of work

Maximum excavation radius (mm) 9930

Maximum excavation radius of the parking surface (mm) 9380

Maximum excavation depth (mm) 6730

Maximum excavation height (mm) 9220

Maximum unloading height (mm) 6430

Maximum vertical excavation depth (mm) 5620
