| MOQ: | 2 sets |
| Price: | $38,000.00/sets >=2 sets |
| Name:ShangHai Long shou Machinery Co,Lt |
d
Address: No 1688 South Lian Hua Road, MinHang district.ShangHai, P. R. China
Contact :olivia
Whats app/ Mobile phone:+8618701954897
We chat number:18701954897

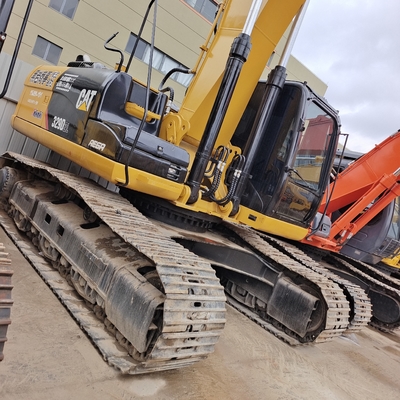

| Caterpillar 329D Excavator |
| Specifications |
| Work Weight (kg) 292 |
| Bucket capacity (m) 1.1 |
| Arm length (mm) 6150 |
| Bucket rod length (mm) 3200 |
| Japan of Origin |
| Tonnage (tonnage) 29 |
| Power Traditional Power |
| Bucket backhoe |
| Manufacturer Import |
| Power Traditional Power |
| performance |
| RPM 10.2 |
| Walking speed (km/h) 3.5/5.3 |
| Climbing ability (%) 70/35 degrees |
| Engine |
| Engine Model C7ACERT |
| Rated power (kw / rpm) 152 / 2000 |
| Displacement (L) 7.2 |
| Cylinder Number (Number) 6 |
| Cylinder diameter x stroke (mm) 110 x 127 |
| Cooling mode water cooling |
| Hydraulic system |
| Main Overflow Setting Pressure (Mpa) 3.5 |
| Maximum flow rate (l/min) 235 of main pump |
| Mpa 3.5 |
| Walking Hydraulic Circuit (Mpa) 3.5 |
| Rotary Hydraulic Circuit (Mpa) 2.75 |
| Pilot Oil Circuit (MPa) 3.9 |
| Boom cylinder-number * diameter * stroke (mm) 140 * 1407 |
| Bucket rod cylinder - Number * Diameter * Stroke (mm) 150 * 1646 |
| Bucket Cylinder-Number *Diameter *Stroke(mm)135 *1156 |
| Is the Hydraulic Crushing Pipeline Standardized or not? |
| Oil capacity |
| Fuel tank (L) 520 |
| Hydraulic tank (L) 145 |
| Hydraulic system (L) 310 (including fuel tank) |
| Engine Oil Replacement Quantity (L)30 |
| Coolant (L) 30 |
| Main body size |
| Total length of transport (mm) 10410 |
| Total Transportation Width (mm) 2990 |
| Total Transportation Height (mm) 3180 |
| Cab Height (mm) 3040 |
| Counterweight ground clearance (mm) 1110 |
| Track Grounding Length (mm) 3490 |
| Total Track Length (mm) 4360 |
| Crawler board width (mm) 600 |
| Total Track Width (mm) 2990 |
| Track gauge (mm) 2390 |
| Minimum ground clearance (mm) 490 |
| Rear end radius of rotation (mm) 3080 |
| Scope of operation |
| Maximum excavation radius (mm) of stopping surface 10600 |
| Maximum excavation depth (mm) 7170 |
| Maximum excavation height (mm) 9990 |
| Maximum unloading height (mm) 7020 |
| Maximum vertical excavation depth (mm) 6510 |
| Maximum excavation depth (mm) 7010 |
load method
advantage and weekness :best ,keep machine complete and well .u can use when received it ,only waste freight
Method 2 (take boom and bucket out ,put boom on top of machine or other pieces ,same CBM )
Method 3 use 40FR Frame
Method 4 use 40HQ container ,cheapest but destroy machine
|
|
